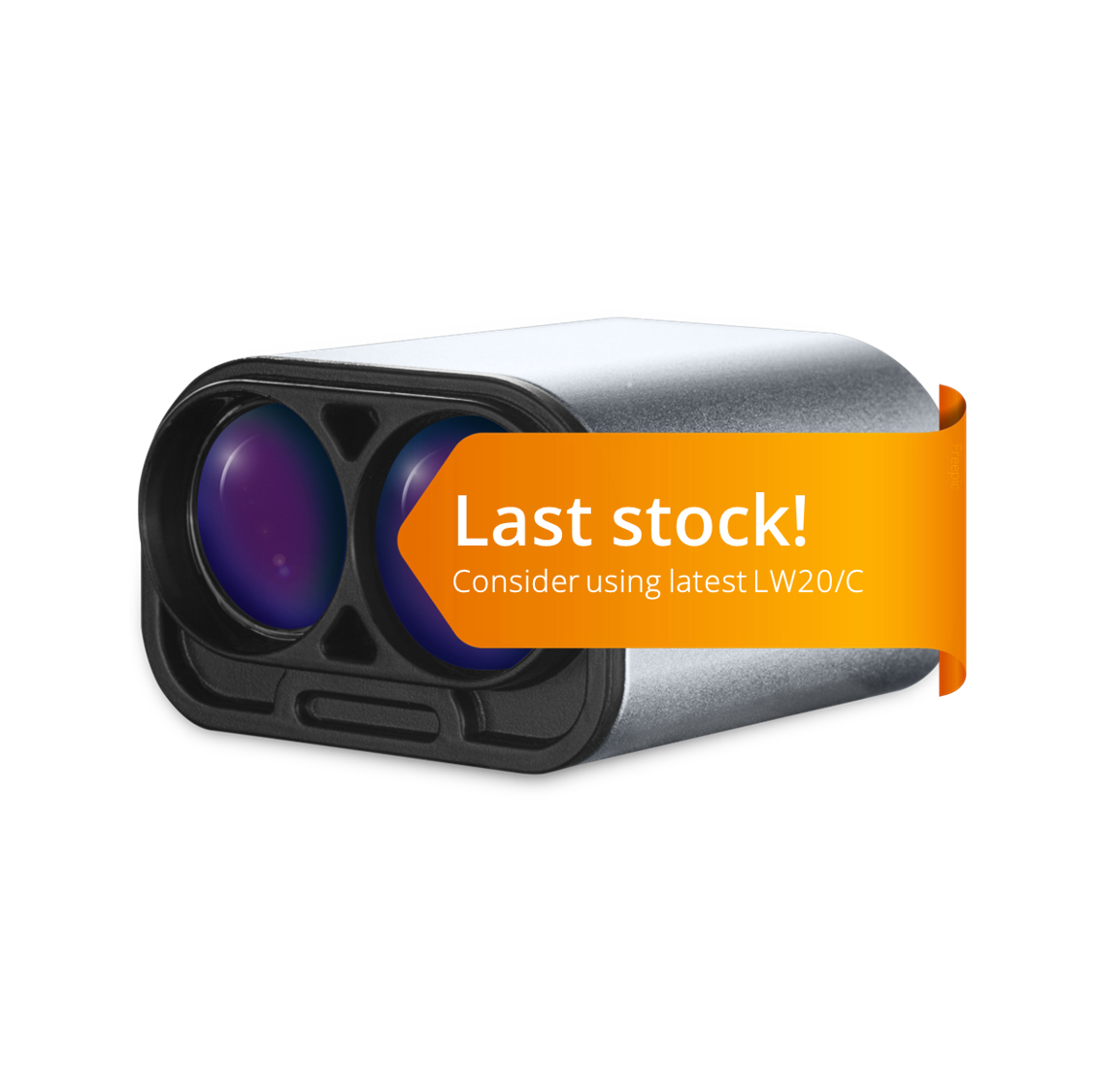

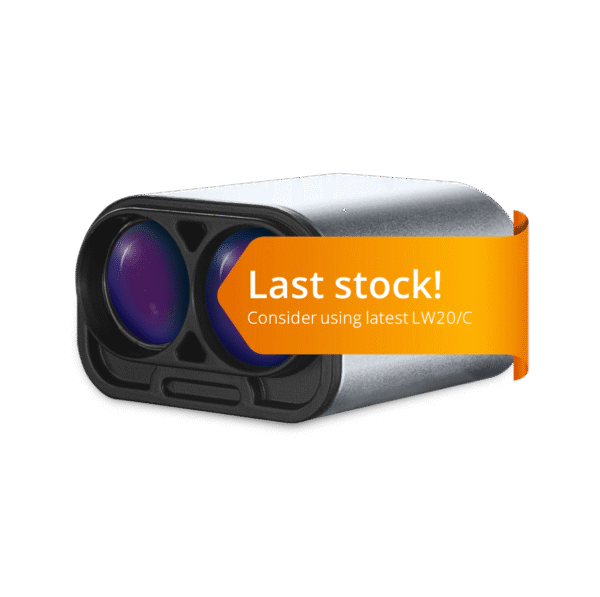

LW20/C R19 (100 m)
The -10°C to 50°C variant of the very popular, robust sensor
$299.00 excl. Taxes
747 in stock (can be backordered)
Applications
AGL (above ground level), Autonomous take-off and landing, Terrain following, Position hold, Vehicle & pedestrian counting, Inventory management, Profiling vehicle shapes
The industry standard
100 meter microLiDAR®
The LW20/C is the industry standard for 100 meter range capability, reliability, and ease of use
Environmental protection
IP67 rated sensor
Dust and water-resistant for external mounting without needing additional protection
Dust penetration
First and last pulse detection
Improved performance in difficult environmental conditions, including dust, mist, fog, rain and snow
LW20/C R19 (100 m)
Specifications
LiDAR type
Single beam
Wavelength
905 nm
Range
0.2 to 100 m / 0.6 to 328 ft
Update rate
48 to 5 000 readings per second
Signal processing
First and last pulse available
Weight
19 g / 0.69 oz
Size
30 mm x 20 mm x 43 mm / 1.2″ x 0.8″ x 1.7″
Interfaces
Serial UART and I2C (3.3 V TTL, 5 V tolerant)
Integration
PX4, ArduPilot, Arduino, Raspberry Pi and LW Studio
Water and dust?
Challenge accepted!
Challenge accepted!
The LW20/C has become the industry-standard microLiDAR® with 100m range capability. Designed for reliability, it features an IP67 rating for dust and water resistance, making it suitable for external mounting without additional protection. Its advanced dust penetration technology ensures peak performance even in challenging environmental conditions, including dust, mist, fog, rain, and snow.
Range
Measures 0.2 to 100 m / 0.6 to 328 ft, even in bright sunlight conditions.
Maximum range achieved on targets with 70% reflectivity.
Update
rate
Offers update rates of 48 to 5 000 readings per second.
Update rates can be customized to best suit your application.
In the box
LW20/C microLiDAR® sensor (cable connected). Pixhawk adapter.
Applications
LW20/C R19 (100 m)
Downloads
Download all comprehensive guidance and resources here.
Accessories
Sensing your world starts here:
our clients’ stories
our clients’ stories
LightWare microLiDAR® is proud to support our pioneering clients as they deliver innovative solutions in their respective industries. Here’s how they apply LiDAR and what they have to say about our microlidar® sensors.
Chairman WüSpace
“We needed the best, smallest and most compact LiDAR out there. It was the only LiDAR that we found that was small enough and that had enough documentation that...”
Flying for WildLife
“We were completely blown away by both the SF30/D and the tablet app that was built for us in such a short period of time to really help us do what we do...”
Skyfish
“The LiDAR is fantastic. The form factor is great, it’s super light, super small, easy to mount doesn’t take up a lot of real estate. The level of customer service that...”
