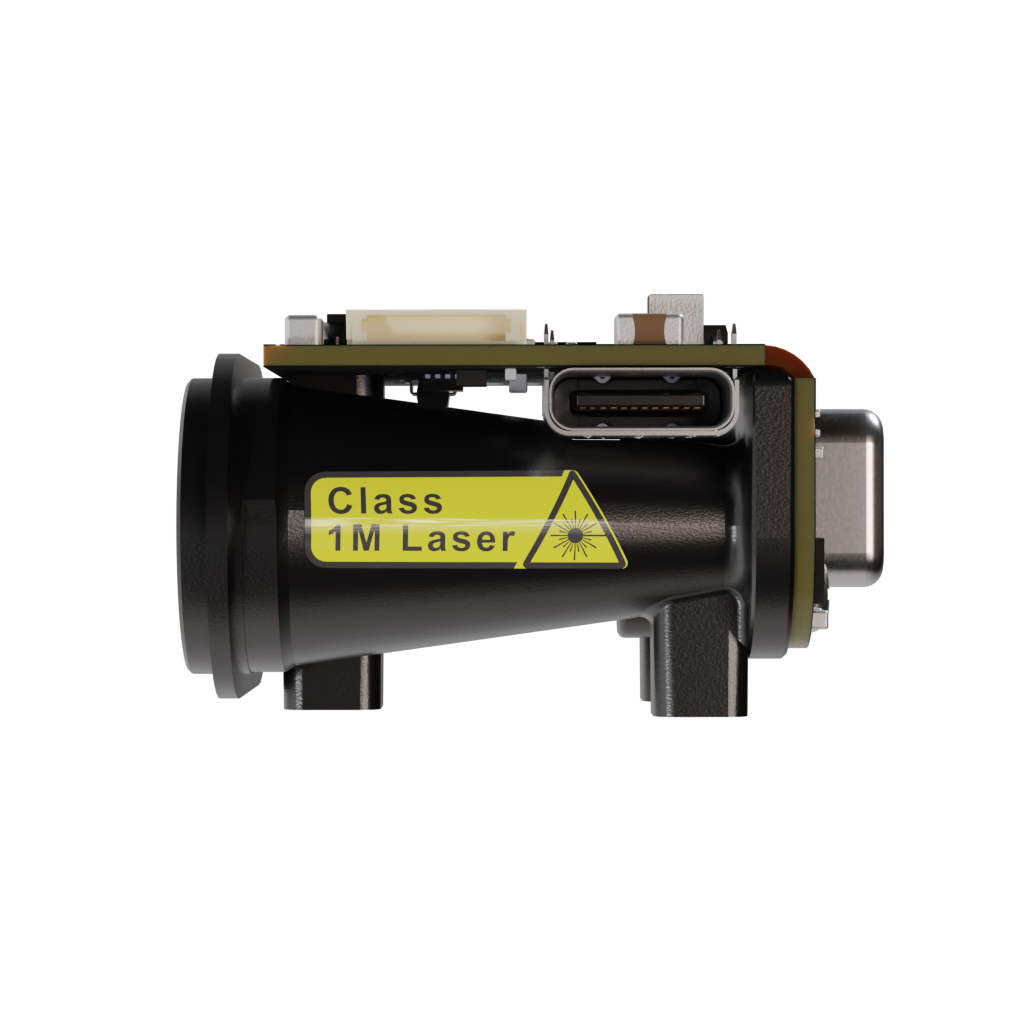

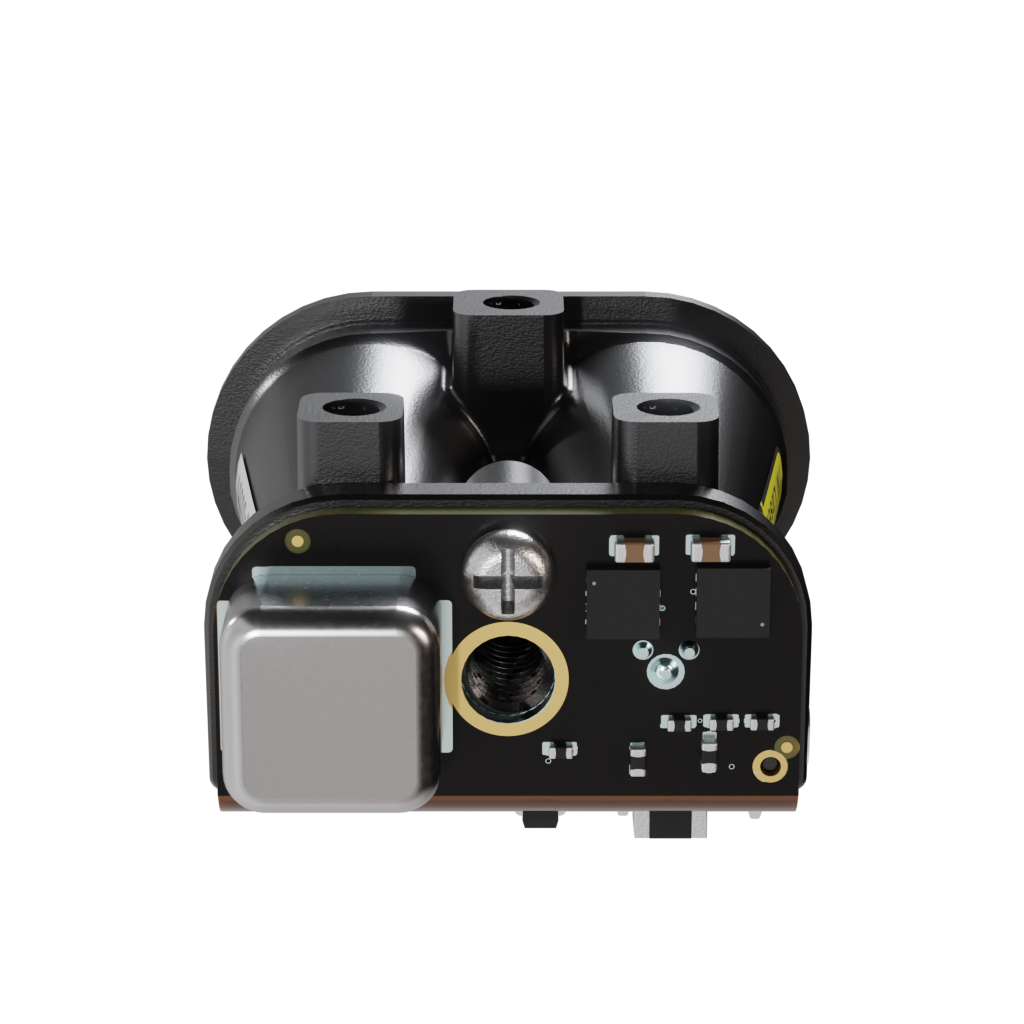

GRF-500 (500 m)
Extended range laser rangefinder for gimbals
$399.00 excl. Taxes
34 in stock
Applications
Gimbal rangefinding, Above ground level, Security
Extended range
500 m / 1640ft Laser rangefinder
Extended range and reliable performance over the entire 500 meter range, making this the lightest 500 meter lidar in the world
Perfect for integration
32mm x 34mm x 21mm
Specifically designed for integration into space-constrained gimbals.
Longer endurance and range
Extend your endurance with the GRF-500.
Full 500m range performance at only 10.7 grams and consuming 0.6W.
GRF-500 (500 m)
Specifications
LiDAR type
Single beam
Wavelength
905 nm
Range
0.2 m to 500 m / 0.6 to 1640 ft. (at 5 Hz update rate, 40% albedo, 23 km
visibility, 4 m x 4 m target size)
visibility, 4 m x 4 m target size)
Update rate
0.5 to 10 readings per second
Signal processing
1 to 5 distance outputs / first and last
Weight
10.7 g / 0.377 oz
Size
32 mm x 34 mm x 21 mm / 1.3 in x 1.4 in x 0.8 in
Interfaces
USB, Serial UART and I2C (3.3 V TTL, 5 V tolerant)
Integration
Arduino, Raspberry Pi and LW Studio (PX4 and Ardupilot to follow)
Need extended distance measurement on your gimbal?
Detect and decide from afar with the GRF-500. It is optimized in size, weight and power consumption for easy integration into gimbals to augment the visual information with valuable, highly accurate distance data. Enhance the efficiency of your operations with reliable distance measuring for accurate location tracing, object detection or focusing.
Range
Measures 20cm to 500 m / 0.6ft to 1640 ft (at 5 Hz update rate, 40% albedo, 23 km visibility, 4 x 4 m target size)
Update
rate
Offers update rates of 0.5 to 10 readings per second. Update rates can be customized to best suit your application.

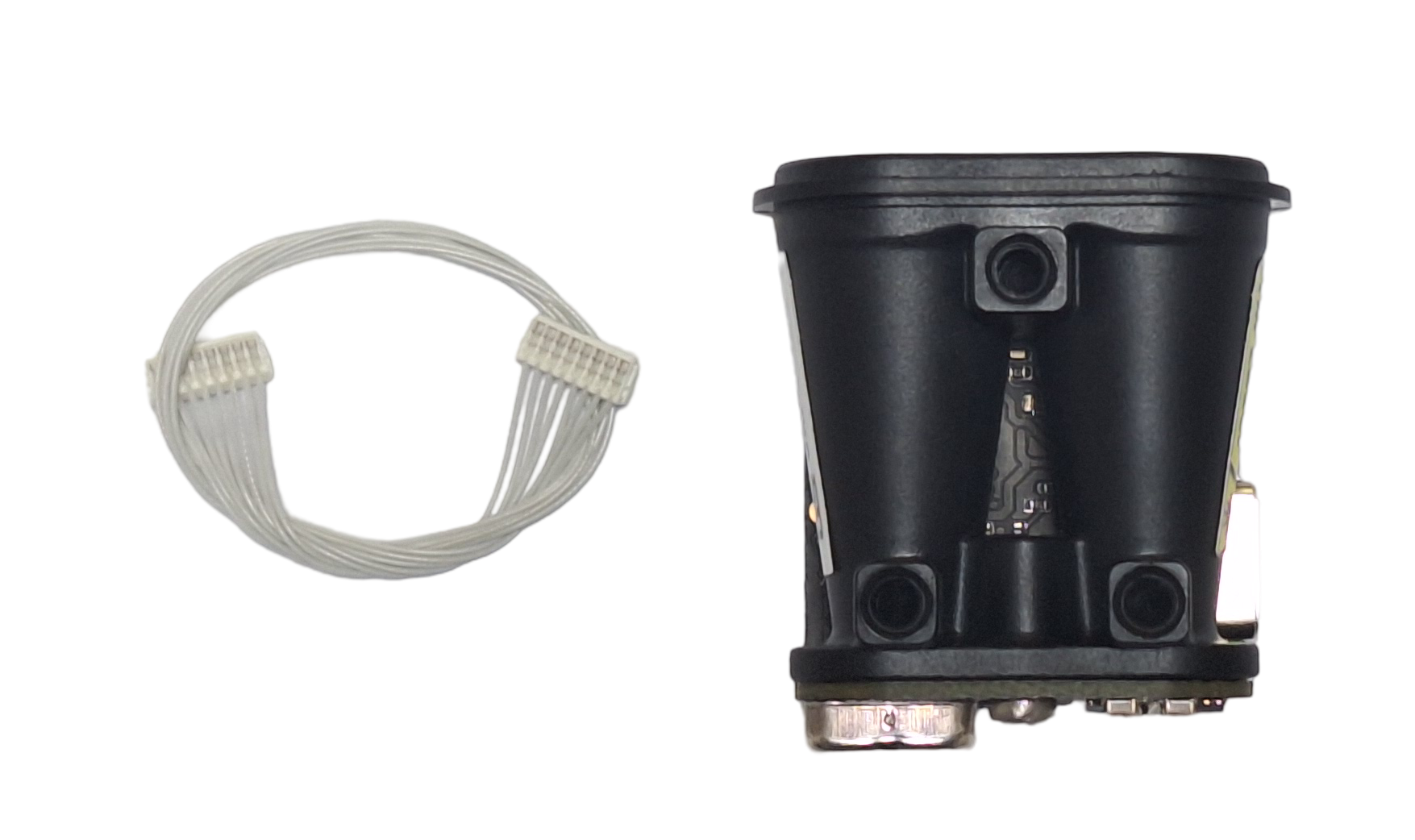

In the box
GRF-500 laser rangefinder and communication cable
Applications
GRF-500 (500 m)
Downloads
Download all comprehensive guidance and resources here.
Accessories
$3.95 excl. Taxes
Communication and power cable (102mm) for GRF-series
$29.95 excl. Taxes
Generic break out board for LW20 / SF20 / GRF-series
$29.95 excl. Taxes
Generic USB adapter for LW20 / SF20 / GRF-series
$27.99 excl. Taxes
USB2.0 CM to CM for GRF-series
