LW20/C IP67-rated 100m LiDAR sensors

The robust, easy to use, plug and play sensor

$349.00 excl. Taxes

Available on backorder

Available on backorder

Applications

AGL (above ground level), Autonomous take-off and landing, Terrain following, Position hold, Vehicle & pedestrian counting, Inventory management, Profiling vehicle shapes
View product guide
Compact rectangular LW20 sensor with a silver housing and two large purple-tinted lenses on a light gray background.
LW20/C IP67-rated 100m LiDAR sensors - Image 2
Compact rectangular LW20 sensor with a silver housing and two purple-tinted lenses, shown with dimensions of 30 mm wide by 20 mm high.
LW20/C IP67-rated 100m LiDAR sensors - Image 4
LW20/C IP67-rated 100m LiDAR sensors - Image 5
LW20/C IP67-rated 100m LiDAR sensors - Image 6
LW20/C label

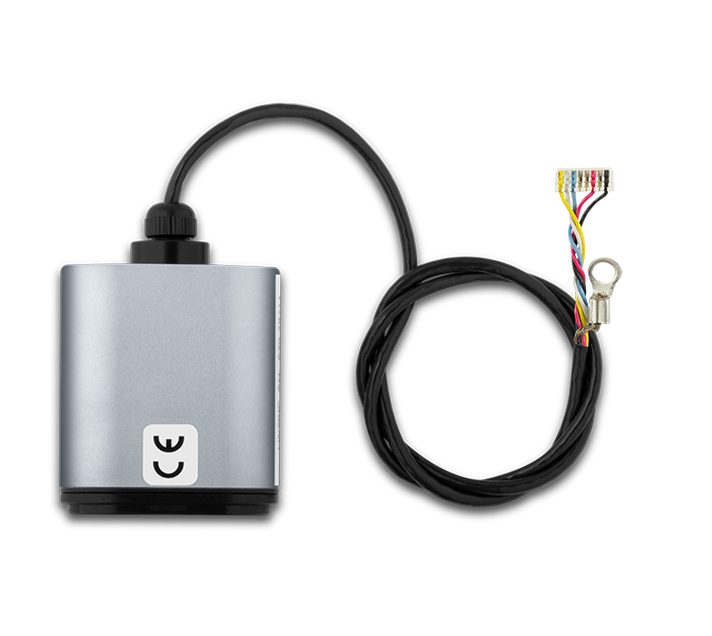

Silver rectangular LW20 sensor with an attached black cable ending in a multicolored wire connector, displayed on a light gray background.
The industry standard

100 meter microLiDAR®
The LW20/C is the industry standard for 100 meter range capability, reliability, and ease of use

Environmental protection

IP67 rated sensor
Dust and water-resistant for external mounting without needing additional protection

Dust penetration

First and last pulse detection
Improved performance in difficult environmental conditions, including dust, mist, fog, rain and snow

LW20/C IP67-rated 100m LiDAR sensors

Specifications

LW20/C IP67-rated 100m LiDAR sensors

Specifications

Blue and orange abstract icon featuring radiating lines and circular endpoints, resembling a sensor scan, signal burst, or connectivity graphic.

LiDAR type

Single beam
Abstract logo featuring a dark blue wavy line with an orange geometric symbol at the center on a white square background.

Wavelength

905 nm
Binoculars icon with dark blue lenses and frame, orange accents on top and sides, and a small white highlight in the center.

Range

0.2 to 100 m / 0.6 to 328 ft
Dark blue circular arrow icon surrounding an orange lightning bolt, with a dark blue triangular accent in the upper-right corner.

Update rate

48 to 5 000 readings per second
Computer monitor icon with an orange heartbeat waveform across the screen and a dark blue stand on a white background.

Signal processing

First and last pulse available
Blue analog scale icon with a needle and two small feet, positioned beneath an orange semicircle on a white square background.

Weight

19.5 g / 0.69 oz
3D cube icon with arrows extending outward from the top and both bottom corners, shown in dark blue on a white background.

Size

30 mm x 20 mm x 43 mm / 1.2″ x 0.8″ x 1.7″
Two dark blue interlocking gear icons, one large and one small, on a white background.

Interfaces

Serial UART and I2C (3.3 V TTL, 5 V tolerant)
Play button icon with a dark blue triangle inside an orange outlined triangular shape, on a white square background.

Integration

PX4, ArduPilot, Arduino, Raspberry Pi and LW Studio
Water and dust?
Challenge accepted!

The LW20/C has become the industry-standard microLiDAR® with 100m range capability. Designed for reliability, it features an IP67 rating for dust and water resistance, making it suitable for external mounting without additional protection. Its advanced dust penetration technology ensures peak performance even in challenging environmental conditions, including dust, mist, fog, rain, and snow.

Range

Measures 0.2 to 100 m / 0.6 to 328 ft, even in bright sunlight conditions. Maximum range achieved on targets with 70% reflectivity.

Update
rate

Offers update rates of 48 to 5 000 readings per second. Update rates can be customized to best suit your application.

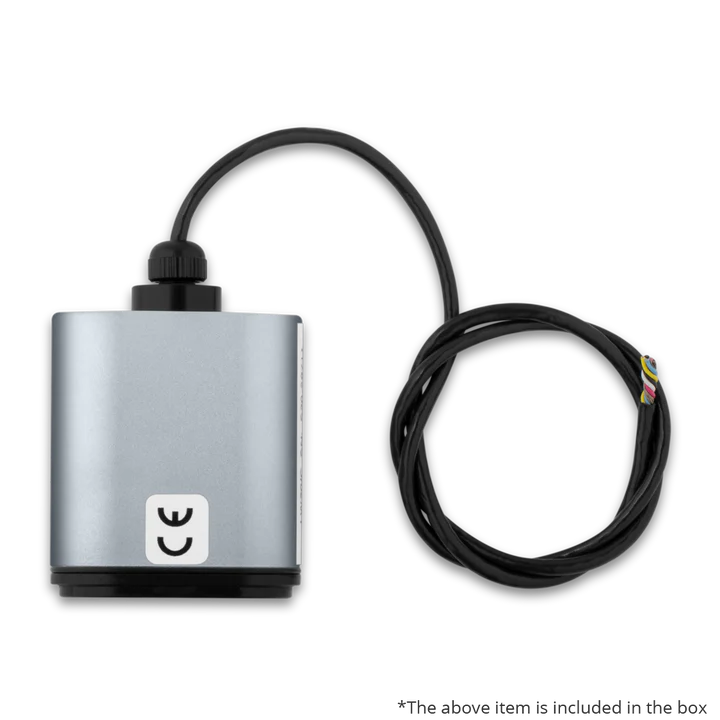

In the box

LW20/C microLiDAR® sensor (cable connected).
