SF000/B ultra light 50m LiDAR sensors

Dynamite comes in small packages, as proven by the SF000/B, an industry favorite!

$319.00 excl. Taxes

Available on backorder

Available on backorder

Applications

AGL (above ground level), Position hold, Autonomous take-off and landing, Detect and avoid
View product guide
Black dual-lens SF000 sensor module with blue-tinted optical lenses and a yellow warning label, displayed on a light gray background.
SF000/B ultra light 50m LiDAR sensors - Image 2
SF000/B ultra light 50m LiDAR sensors - Image 3
SF000/B ultra light 50m LiDAR sensors - Image 4
SF000/B ultra light 50m LiDAR sensors - Image 5
Extremely compact

24mm (h) x 34mm (w) x 20mm (d)
Specifically designed for space-constrained applications.

Breaking boundaries

50 meter microLiDAR®
The SF000/B is the world’s smallest and lightest 50 meter microLiDAR® sensor

Penetrate canopies

First and last pulse detection
Provides a height-above-ground result, while simultaneously checking for tall trees that might be dangerously close.

SF000/B ultra light 50m LiDAR sensors

Specifications

SF000/B ultra light 50m LiDAR sensors

Specifications

Blue and orange abstract icon featuring radiating lines and circular endpoints, resembling a sensor scan, signal burst, or connectivity graphic.

LiDAR type

Static single beam
Abstract logo featuring a dark blue wavy line with an orange geometric symbol at the center on a white square background.

Wavelength

905 nm
Binoculars icon with dark blue lenses and frame, orange accents on top and sides, and a small white highlight in the center.

Range

0.2 to 50 m / 0.6 to 164 ft
Dark blue circular arrow icon surrounding an orange lightning bolt, with a dark blue triangular accent in the upper-right corner.

Update rate

48 to 388 readings per second
Computer monitor icon with an orange heartbeat waveform across the screen and a dark blue stand on a white background.

Signal processing

First and last pulse available
Blue analog scale icon with a needle and two small feet, positioned beneath an orange semicircle on a white square background.

Weight

9.8g / 0.35oz
3D cube icon with arrows extending outward from the top and both bottom corners, shown in dark blue on a white background.

Size

24 mm x 34 mm x 20 mm / 0.9″ x 1.3″ x 0.8″
Two dark blue interlocking gear icons, one large and one small, on a white background.

Interfaces

Serial UART and I2C (3.3 V TTL, 5 V tolerant)
Play button icon with a dark blue triangle inside an orange outlined triangular shape, on a white square background.

Integration

PX4, ArduPilot, Arduino, Raspberry Pi and LW Studio
Navigating tight spaces?
We’ve got you covered.

The SF000/B microLiDAR®, the tiniest and lightest 50-meter microLiDAR® sensor in the world, is designed for applications with size and weight limitations. What’s more, its ingenious first and last pulse detection not only yields accurate height-above-ground readings but also identifies potentially hazardous tall trees.

Range

Measures 0.2 to 50 m / 0.6 to 164 ft, even in bright sunlight conditions. Maximum range achieved on targets with 70% reflectivity.

Update
rate

Offers update rates of 48 to 388 readings per second. Update rates can be customized to best suit your application.

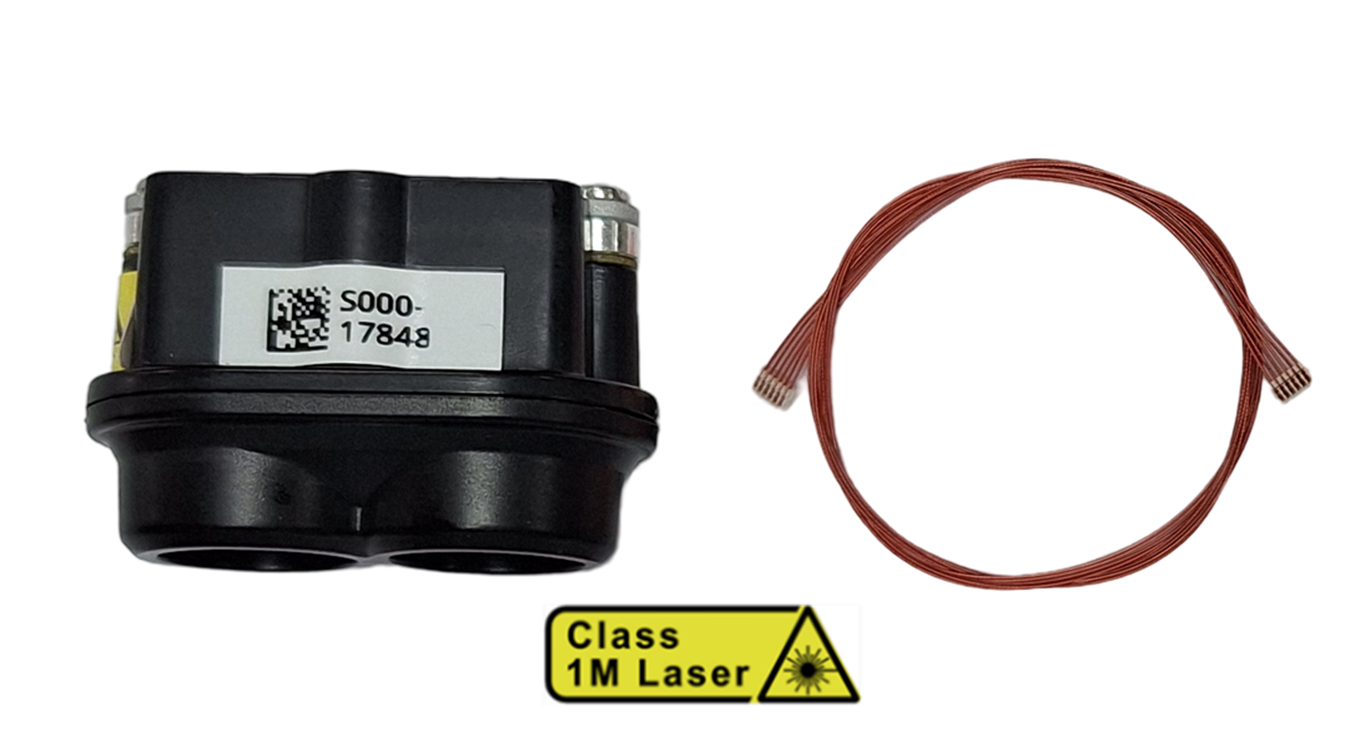

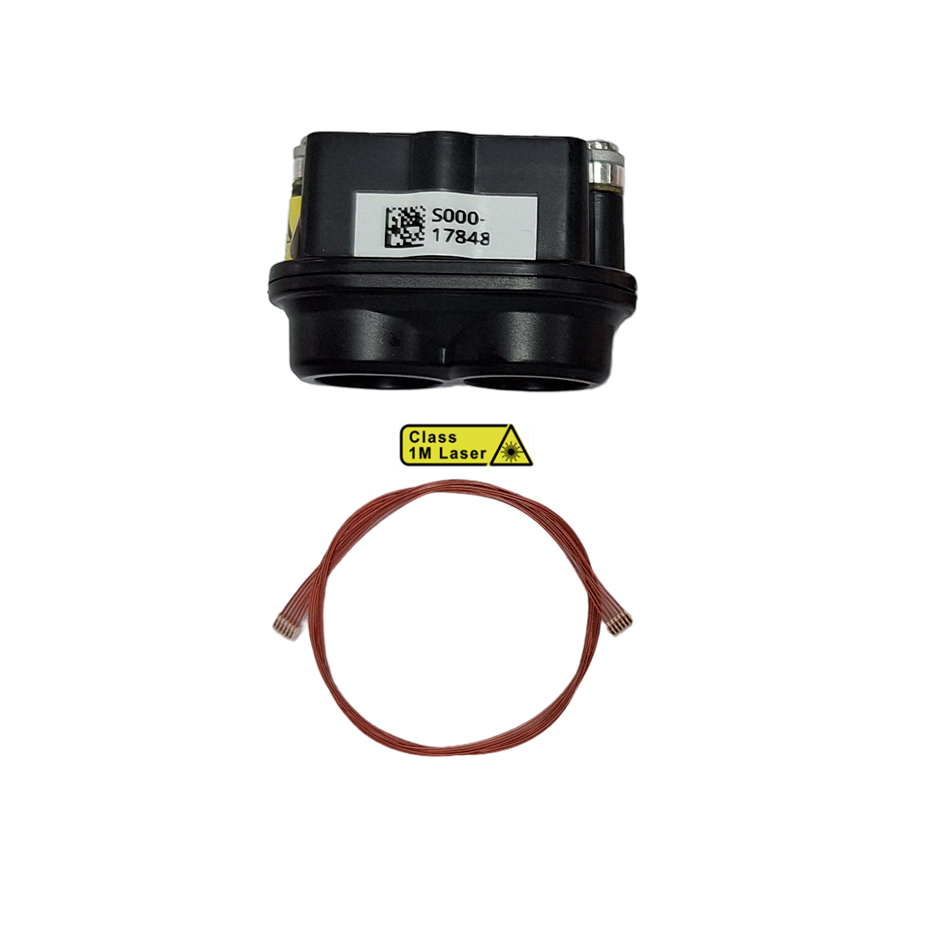

In the box

SF000/B microLiDAR® sensor, a communications cable, and laser warning label.

Applications



SF000/B ultra light 50m LiDAR sensors

Downloads

Download all comprehensive guidance and resources here.

Resource center

Accessories

Orange rectangular gasket with four mounting holes and a large center cutout, displayed on a light gray background.

$2.95 excl. Taxes

ABS mounting bracket for SF000

Add to cart
Coiled red multi-wire cable with white connector plugs on both ends, displayed on a light gray background.

$6.95 excl. Taxes

Communication and power cable (295mm) for SF000

Add to cart
Vertical black circuit board with multiple connectors, mounting holes, and interface ports, displayed on a light gray background.

$16.95 excl. Taxes

Generic break out board for SF000

Add to cart
USB adapter with a black circuit board labeled '000.USB Rev0' mounted above a silver USB connector, on a light gray background.

$22.95 excl. Taxes

Generic USB adapter for SF000

Add to cart
Small black adapter board with two white connectors labeled 'CON1,' featuring a larger connector at the top and a smaller connector at the bottom on a light gray background.

$3.45 excl. Taxes

Pixhawk adapter for SF000

Add to cart
