SF11/C (100 m)
The iconic, long-standing above ground altitude sensor
End of life, October 31 2024
Stock available from the following distributors:
Digikey, 3DXR, Robotshop, Unmanned Technology
Out of stock
Applications
AGL (above ground level), Terrain following, Autonomous take-off and landing, Profiling vehicle shapes
The range you need
100 meter microLiDAR®
The SF11/C is easy to use for measuring above ground level up to 100 meters
Solid support
Autopilot compatibility
This microLiDAR® sensor can easily be integrated with the PX4, Ardupilot, Arduino, or Raspberry Pi
Reduced complexity
Plug and play
The SF11/C was the first microLiDAR® sensor to offer advanced user-friendliness and simplicity
SF11/C (100 m)
Specifications
LiDAR type
Single beam
Wavelength
905 nm
Range
0.2 to 100 m / 0.6 to 328 ft
Update rate
20 readings per second
Signal processing
First pulse only
Weight
29.96 g / 1.06 oz
Size
30 mm x 56 mm x 50 mm / 1.2″ x 2.2″ x 2″
Interfaces
USB, Serial UART and I2C (3.3 V TTL, 5 V tolerant)
Integration
PX4, ArduPilot, Arduino, Raspberry Pi and LW Studio
Need a LiDAR you can trust?
This is the one.
This is the one.
If you need a solution that integrates into your diverse platforms and has proven its reliability, look no further than the SF11/C. It integrates with PX4, Ardupilot, Arduino, or Raspberry Pi. Its legacy shines through user-friendly operation, as the pioneering plug-and-play design of the SF11/C reduces complexity without sacrificing performance.
Range
Measures 0.2 to 100 m / 0.6 to 328 ft, even in bright sunlight conditions.
Maximum range achieved on targets with 70% reflectivity.
Update
rate
Offers an update rate of 20 readings per second while processing a much higher sampling rate, to provide stable and reliable readings.

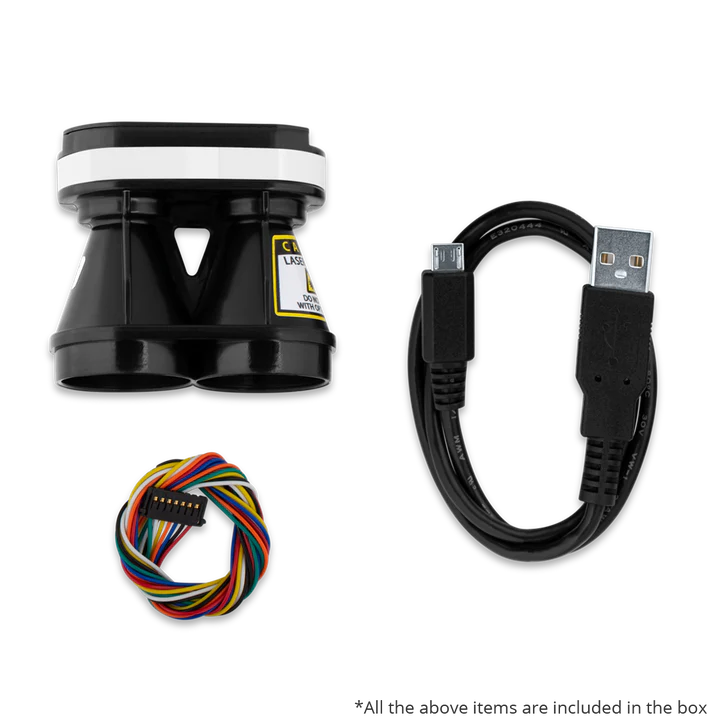

In the box
SF11/C microLiDAR® sensor and a communications cable.
Applications
SF11/C (100 m)
Downloads
Download all comprehensive guidance and resources here.
Accessories
$44.95 excl. Taxes
Aluminium stand kit for SF11/ SF30
$14.95 excl. Taxes
Communication and power cable (350mm) for SF11/ SF30
$11.95 excl. Taxes
USB cable for SF11/ SF30 / SF20
